SawStop CTS Crosscut Sled

Build Date:

This shop-made crosscut sled was built for the SawStop CTS to make crosscuts safer, cleaner, and more repeatable on a compact table saw.

The base uses blue T-track, hold-downs, and a stop block to control the workpiece, while runners underneath guide the sled through the CTS table slots. After assembly, the fence was dialed in with the four-cut method so the sled would cut square to the blade.

Base and T-track

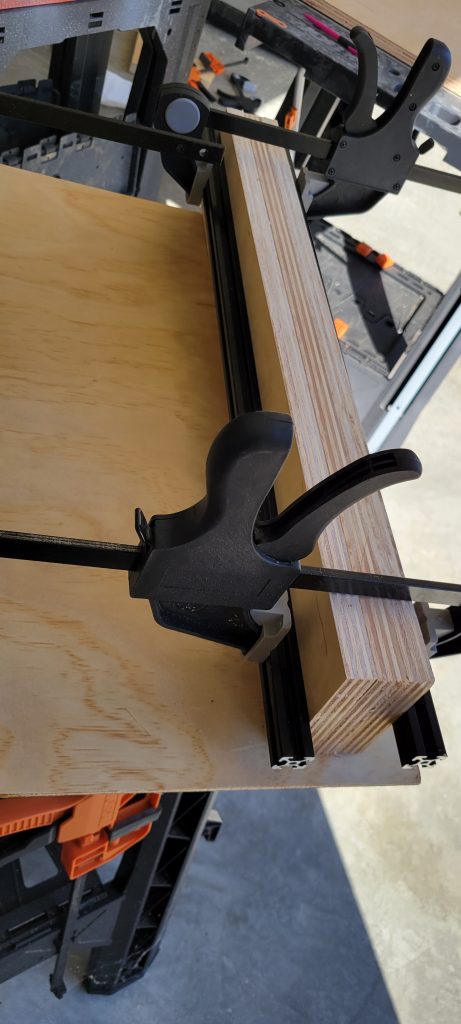

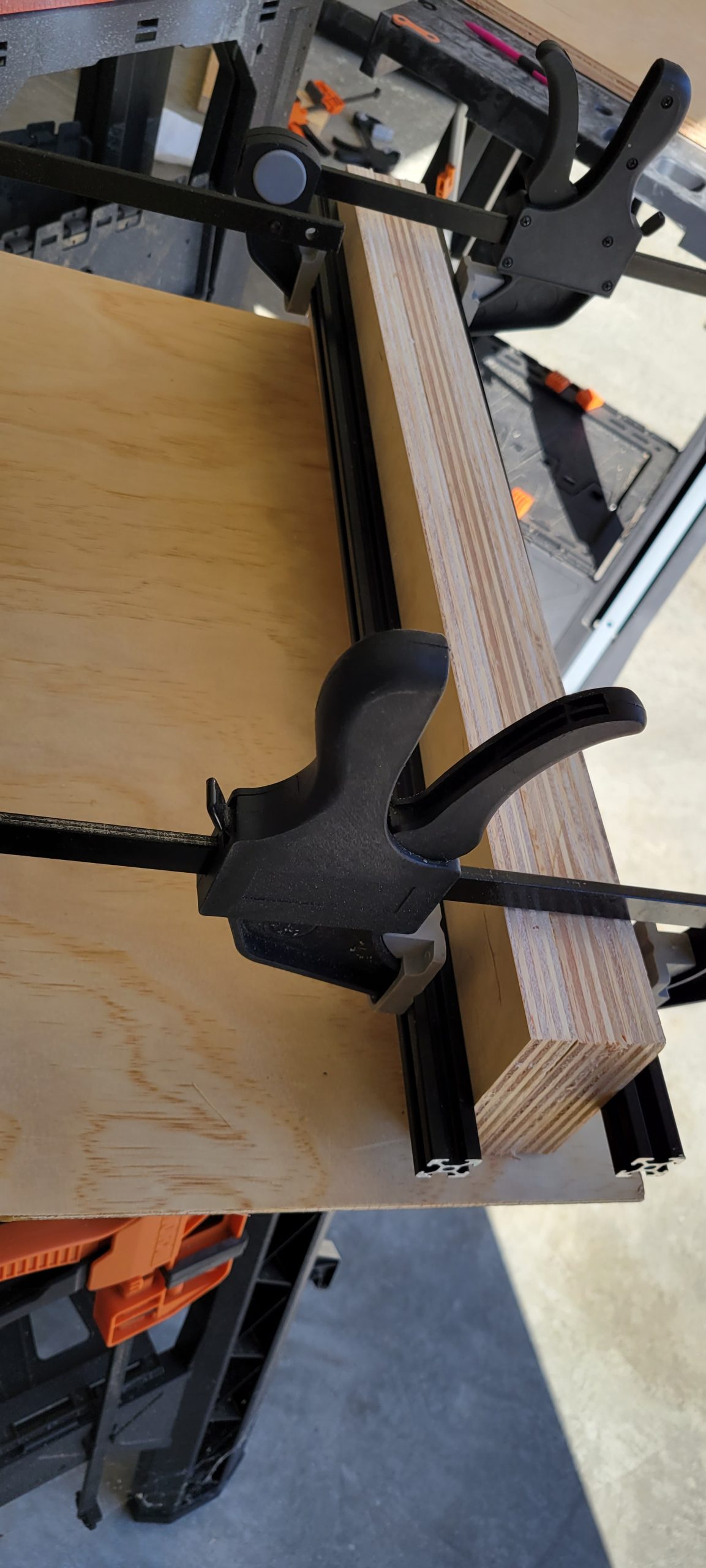

Plywood base clamped while laying out the crosscut sled.
Base panel clamped for layout.

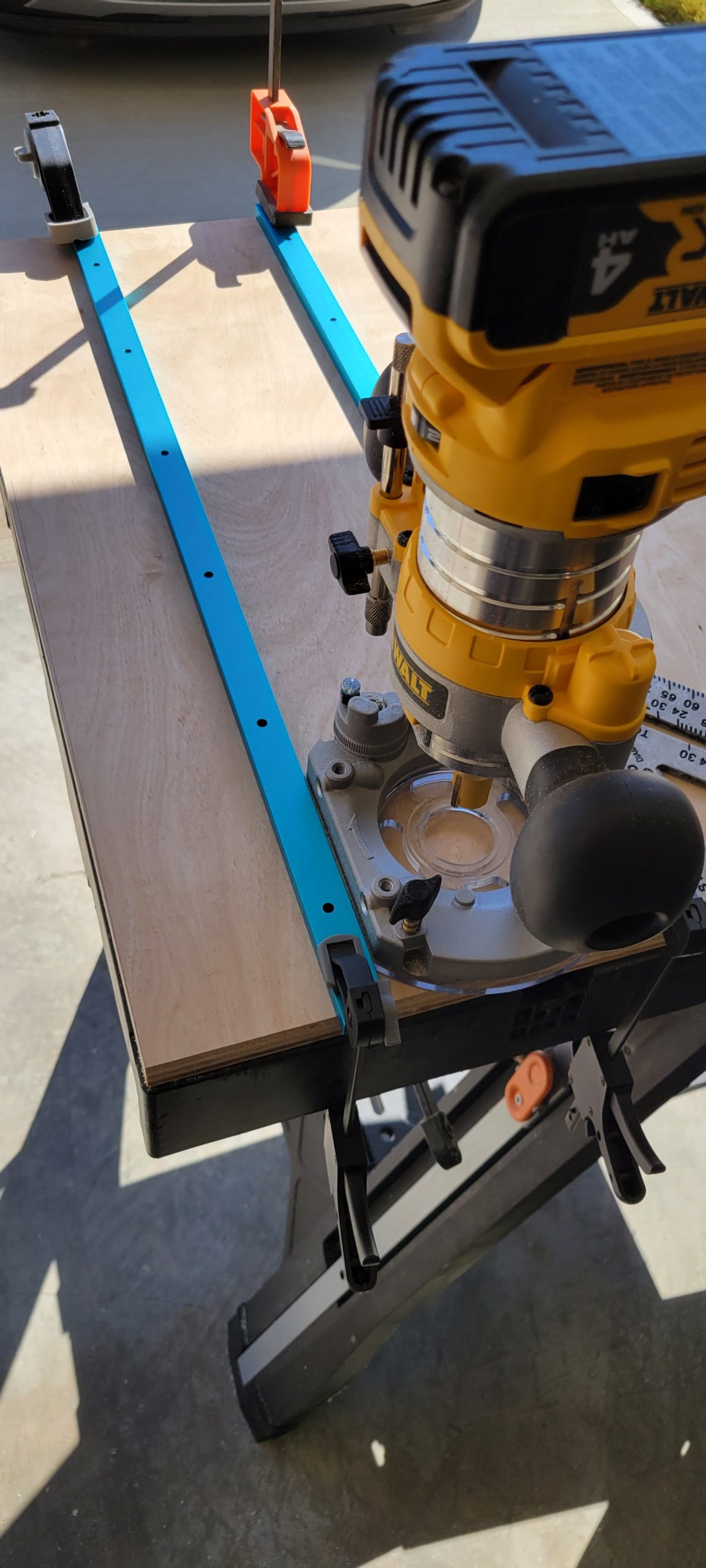

Router setup used to cut blue T-track slots in the sled base.
Routing the T-track slots.

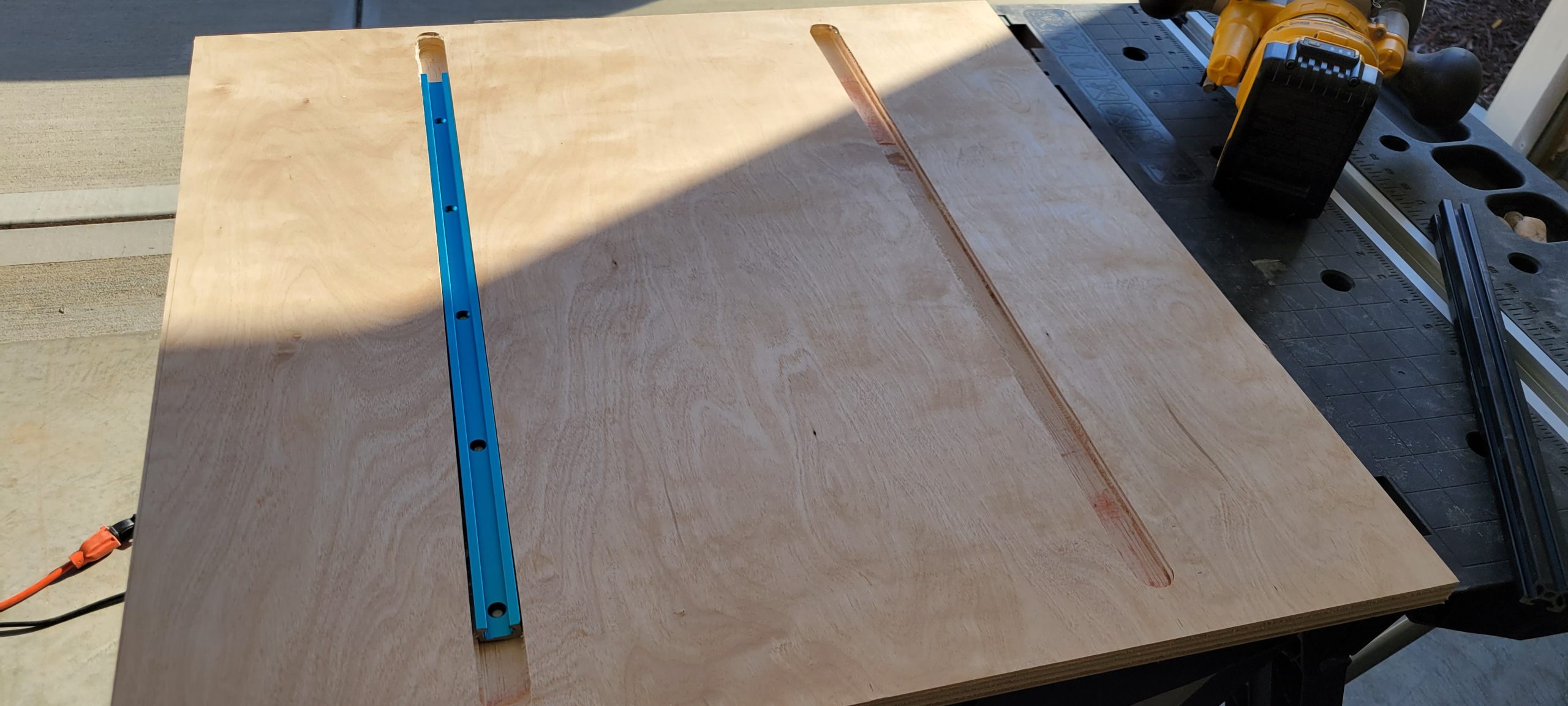

Blue T-track installed in the plywood crosscut sled base.
T-track installed in the base.

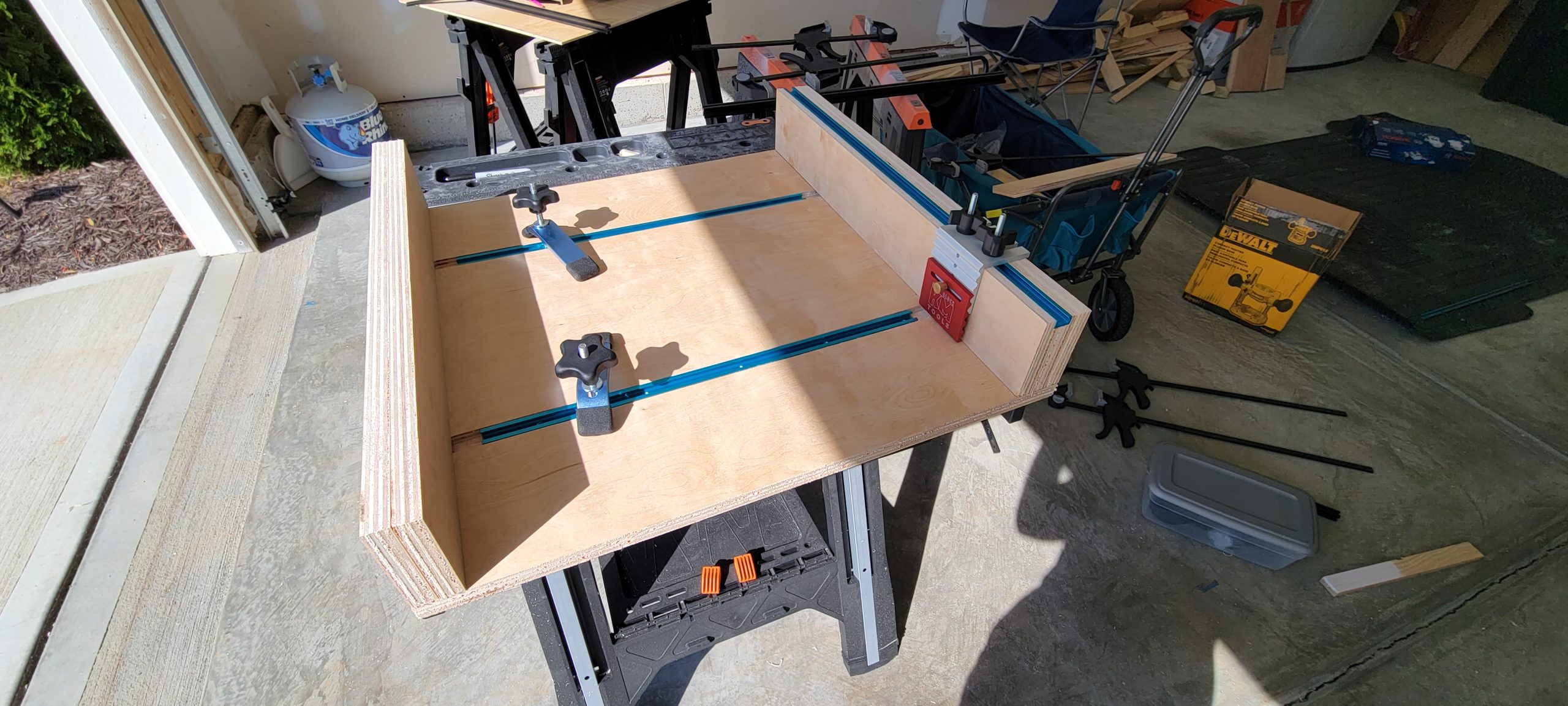

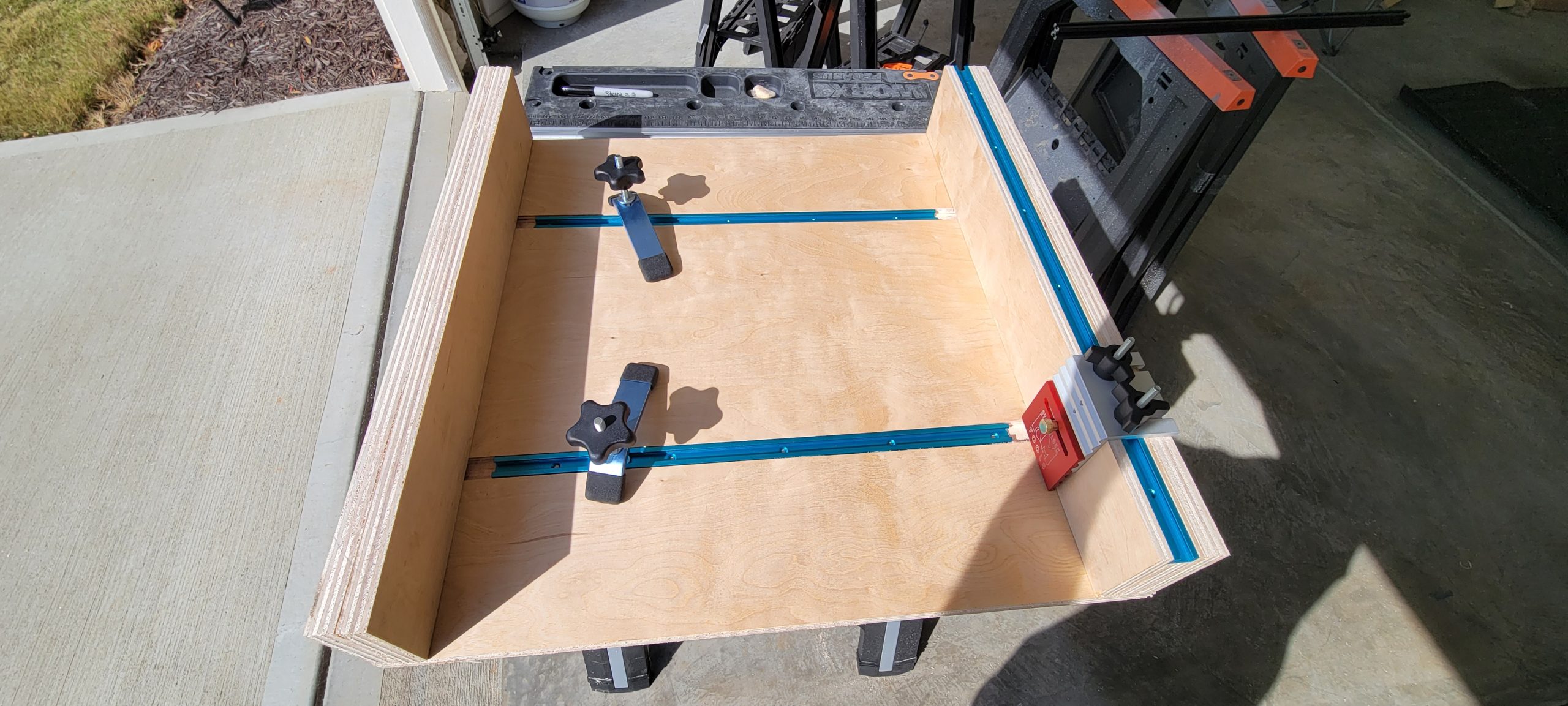

Completed crosscut sled with fences, blue T-track, hold-downs, and stop block.
Fences and hold-downs assembled.

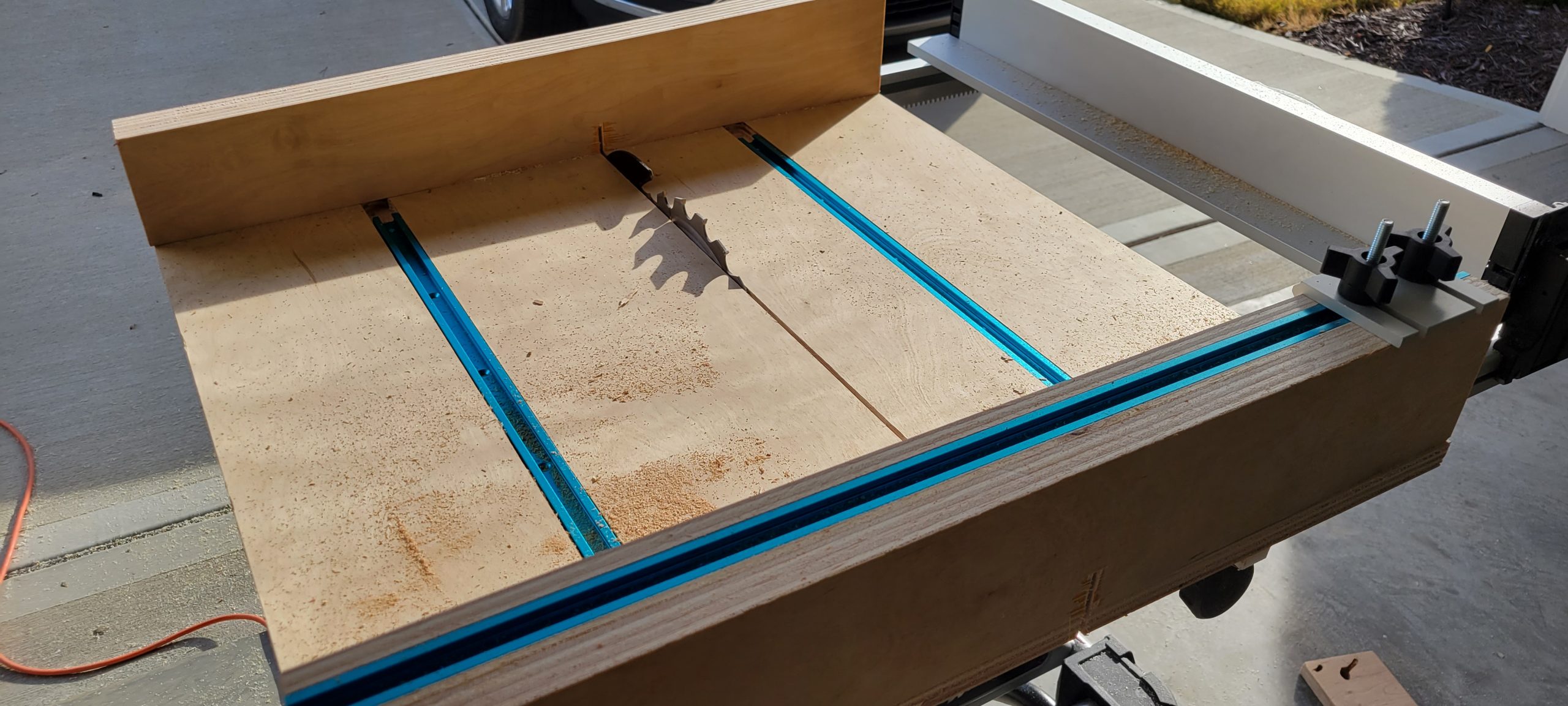

Finished SawStop CTS crosscut sled on the work surface.
Finished sled ready for tuning.

Setup and test cuts

Crosscut sled fence and saw area during setup.
Fence setup at the saw.

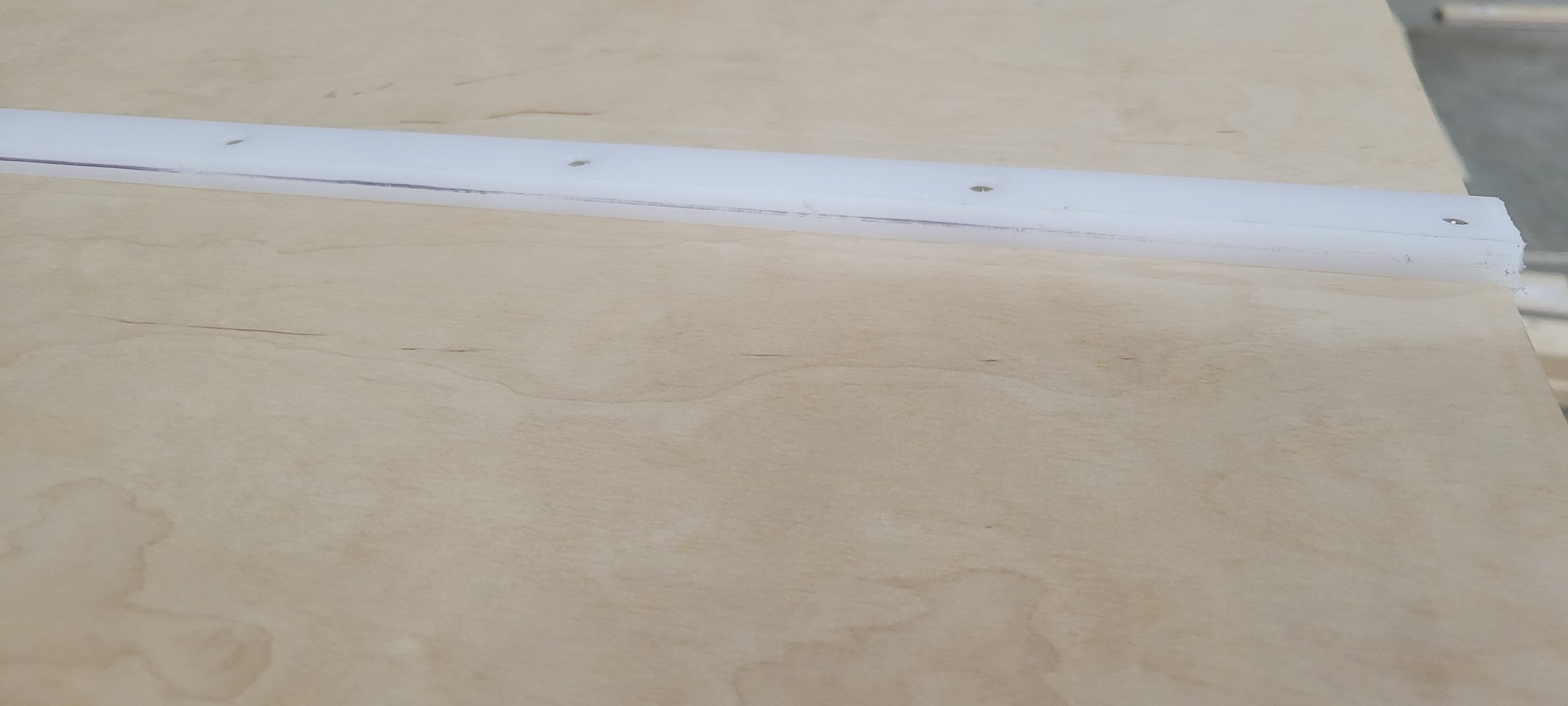

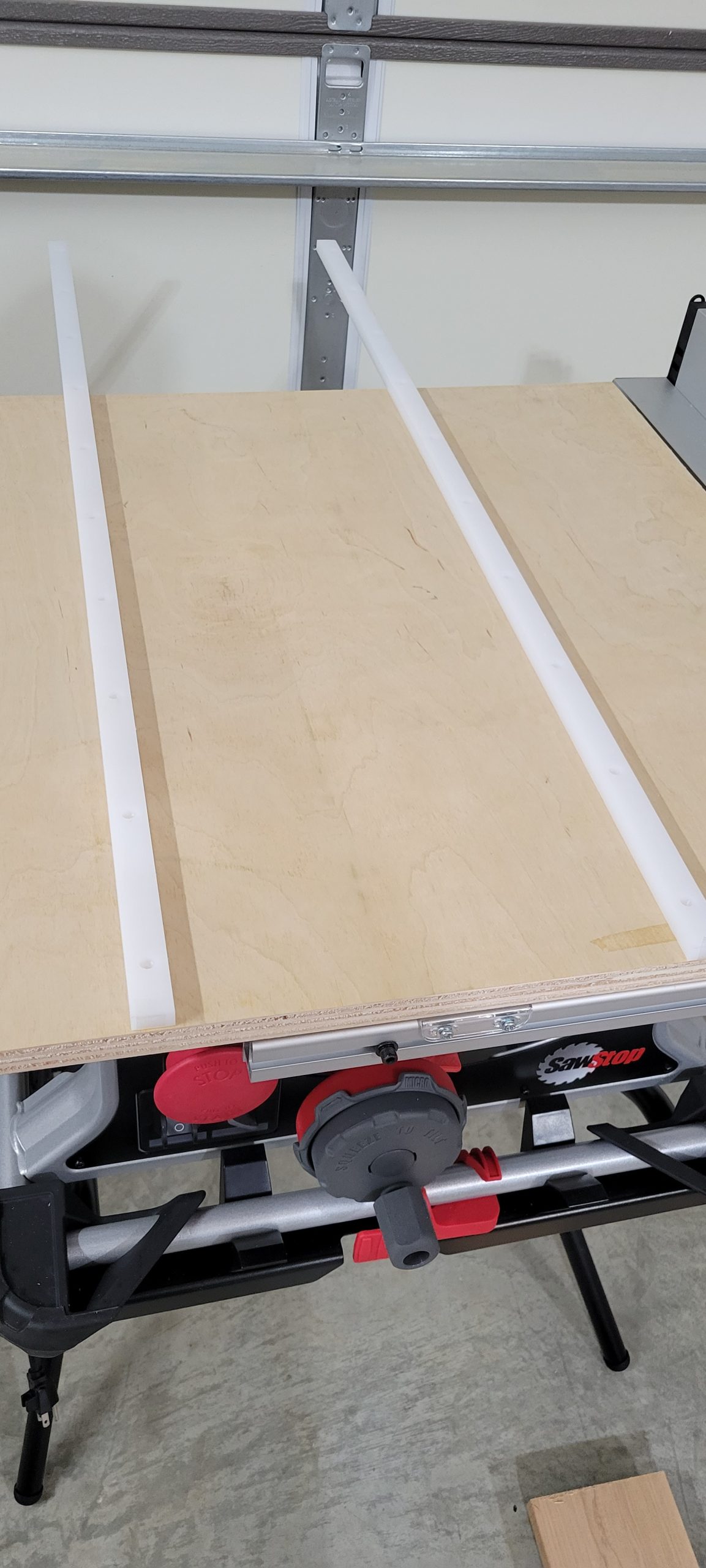

Underside runner detail for the crosscut sled.
Runner detail before final checks.

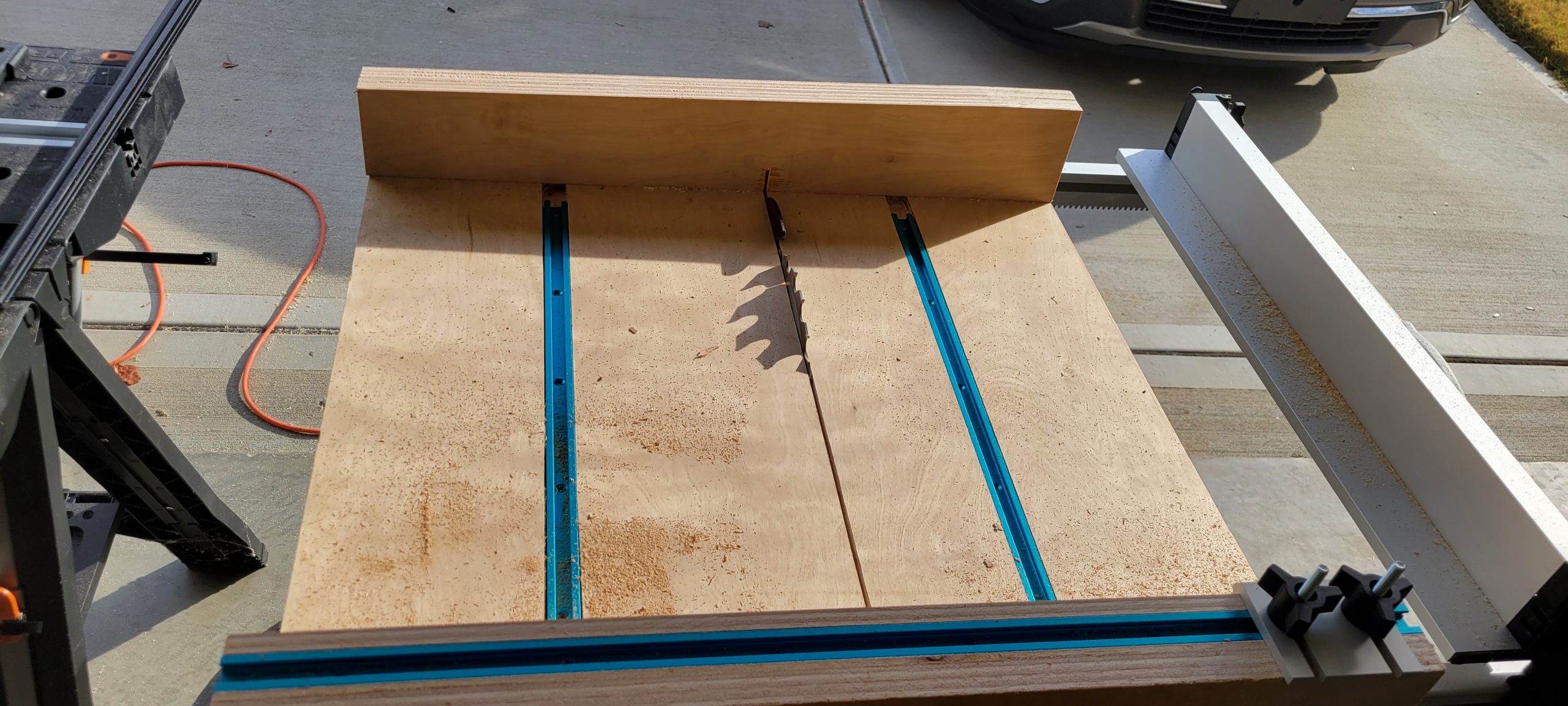

SawStop CTS crosscut sled in use at the blade.
First controlled test cuts.
Crosscut sled supporting a workpiece during a cut.
Sled carrying the workpiece past the blade.

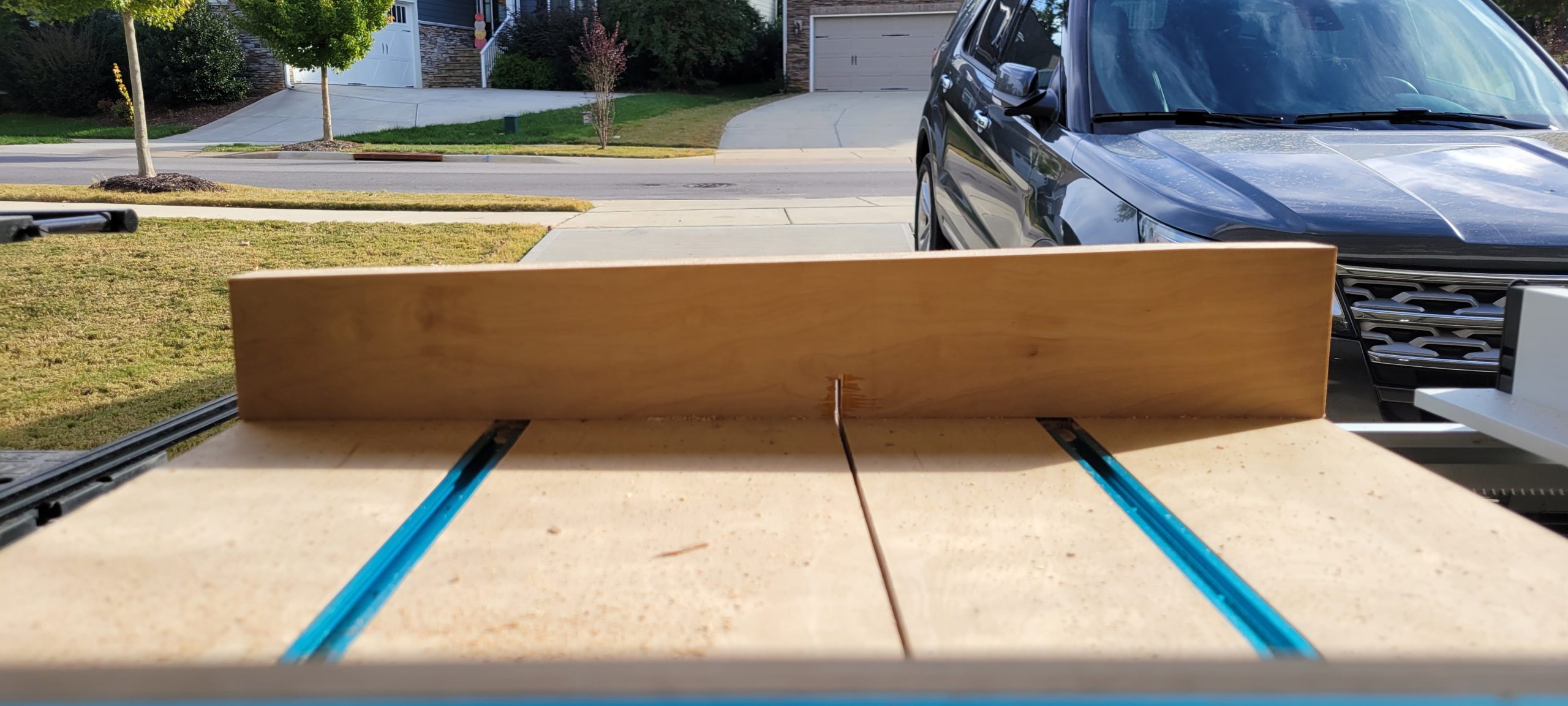

Cut line and fence alignment after tuning the sled.
Square-cut payoff at the fence.

Calibration details

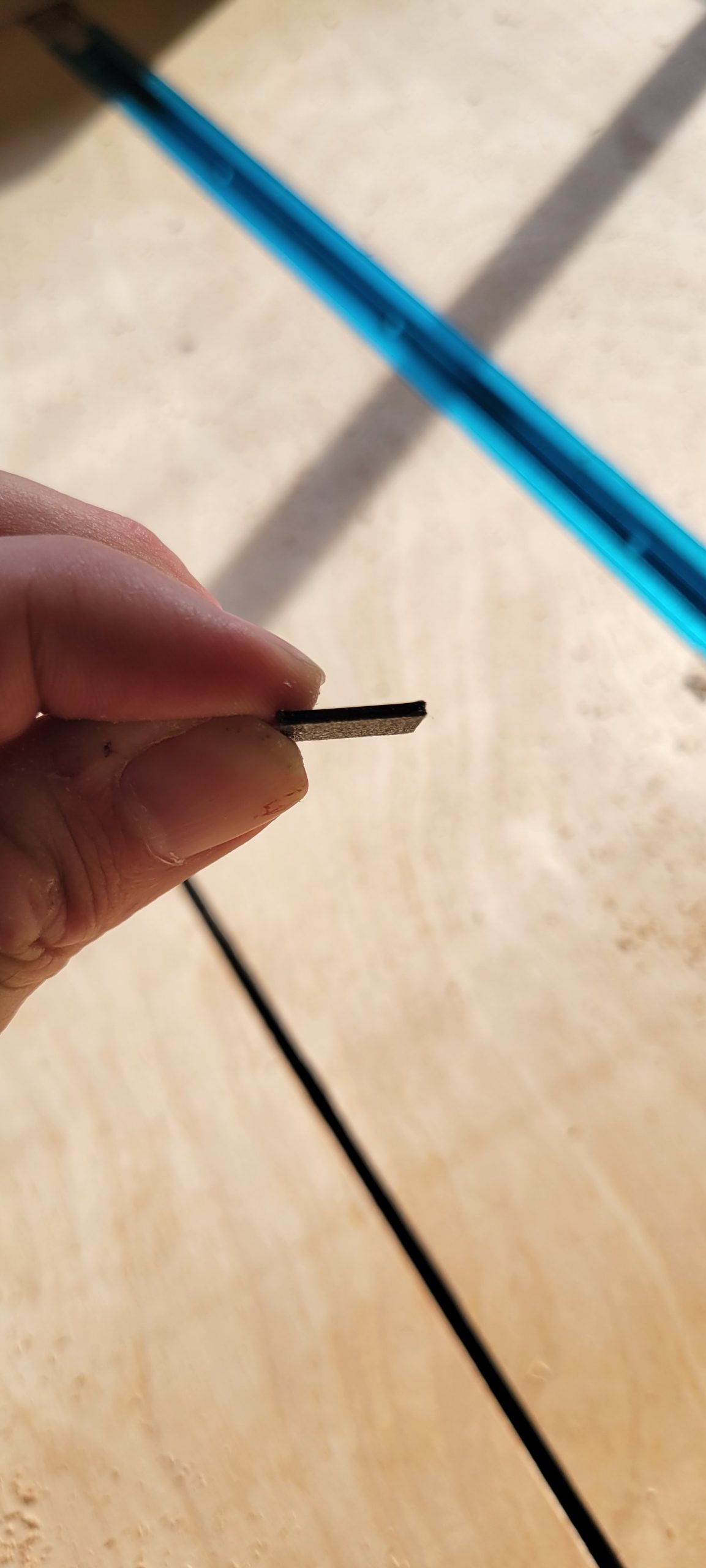

Thin offcut used while calibrating the crosscut sled fence.
Thin offcut from calibration.
Tape measure check during crosscut sled calibration.
Measuring the calibration result.

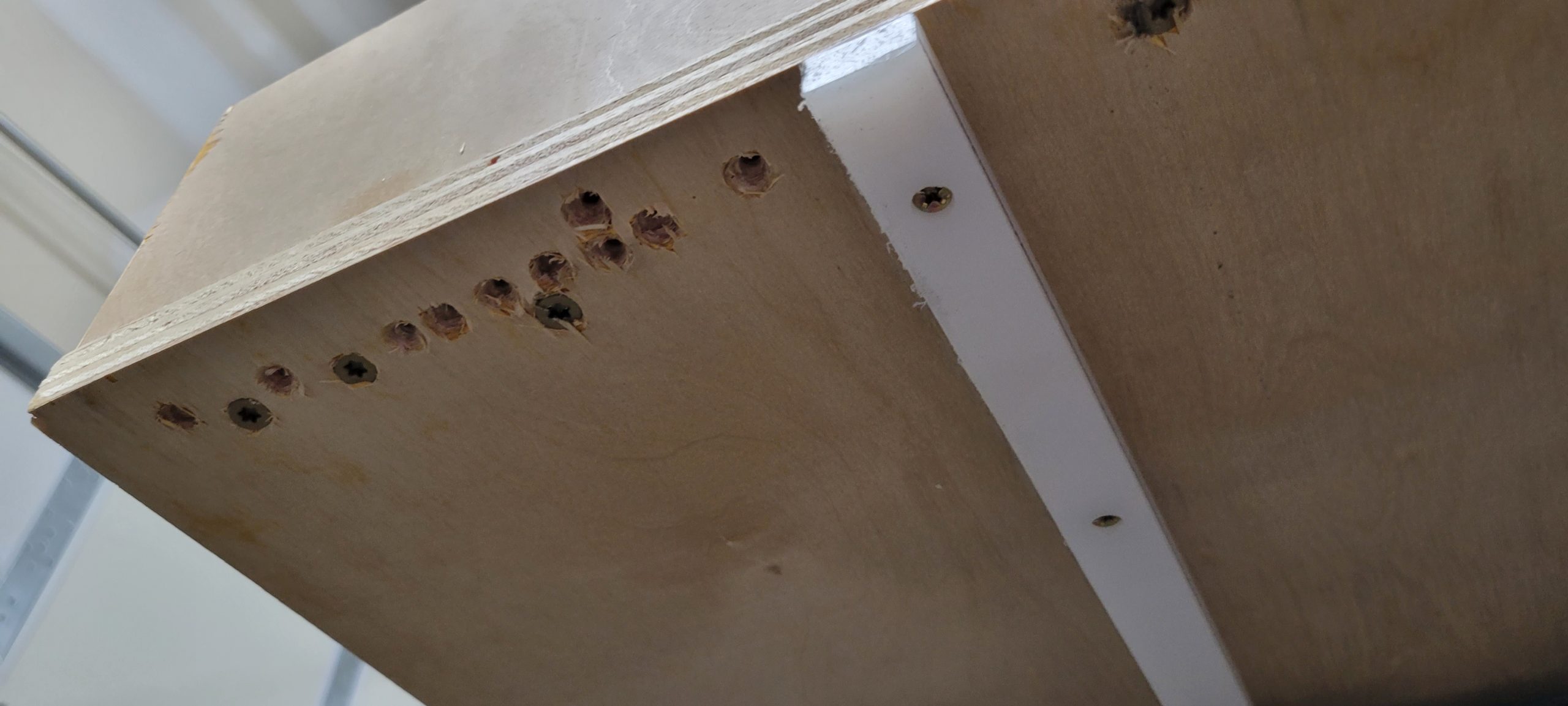

Underside of the crosscut sled showing runners and fasteners.
Underside runners and fasteners.

The finished sled gives the workpiece better support, keeps hands farther from the blade, and makes repeated crosscuts easier to control.
