Waterford Birdhouse: A Brick House Built From CNC Layers

This birdhouse started as a model in Fusion 360 and ended as a small brick house with shutters, steps, a chimney, and a wreath at the entry. The fun part was making the shape feel architectural without losing the handmade character of a working birdhouse.

The design was built around the idea of a brick home in miniature. Instead of carving it as one solid block, the birdhouse was divided into CNC-ready layers, cut, stacked back together, and then finished so the construction disappeared into the final house form.

Modeled Before Cutting

Fusion 360 made it possible to solve the proportions before any material was cut. The front facade, roof, window layout, bird opening, base, steps, and chimney all needed to work together at birdhouse scale, so the model became the roadmap for the physical build.

CNC Layers Reassembled Into a House

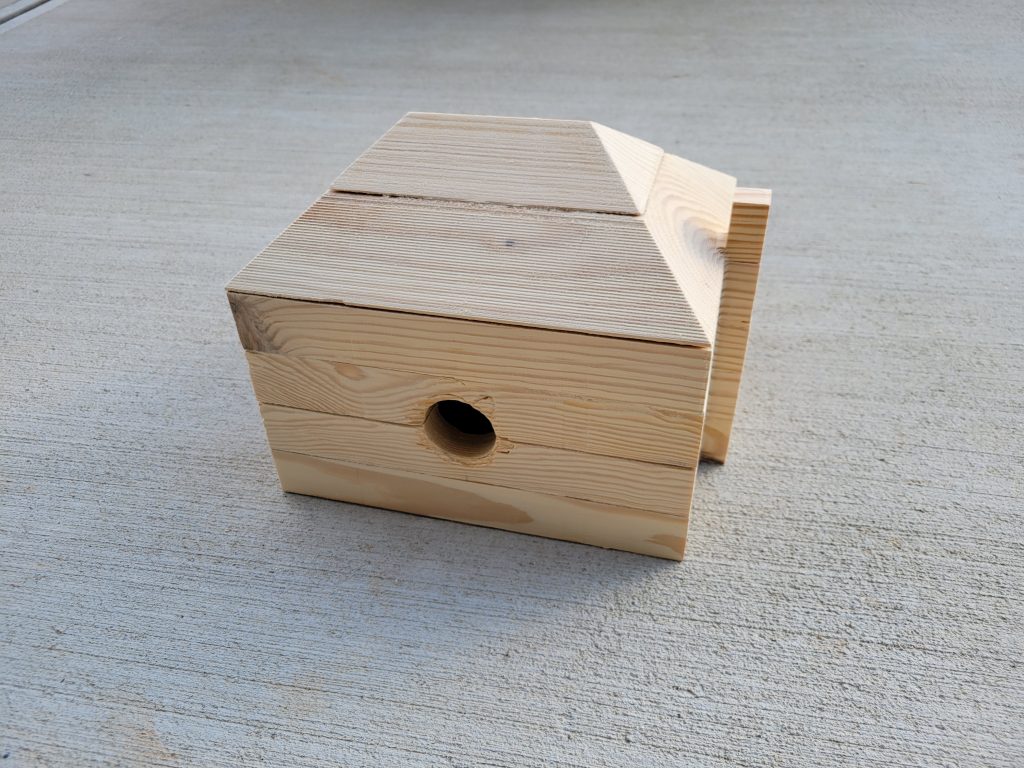

The body was cut as a series of layers on the CNC, then reassembled by hand into the final structure. That layered approach kept the complex shape manageable while still allowing the finished piece to read as a single little house.

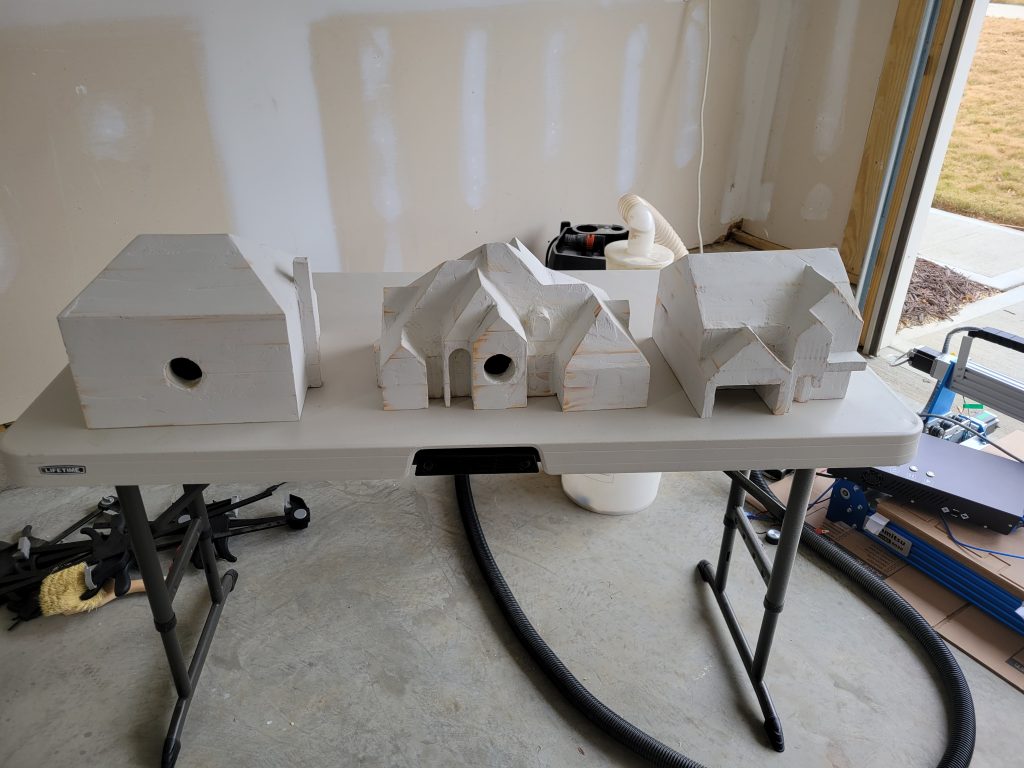

Once the raw form was together, the project shifted from construction to finish work. Primer helped unify the surfaces and made it easier to treat the layered body as one piece before the brick texture and small details were added.

A Textured Brick Finish

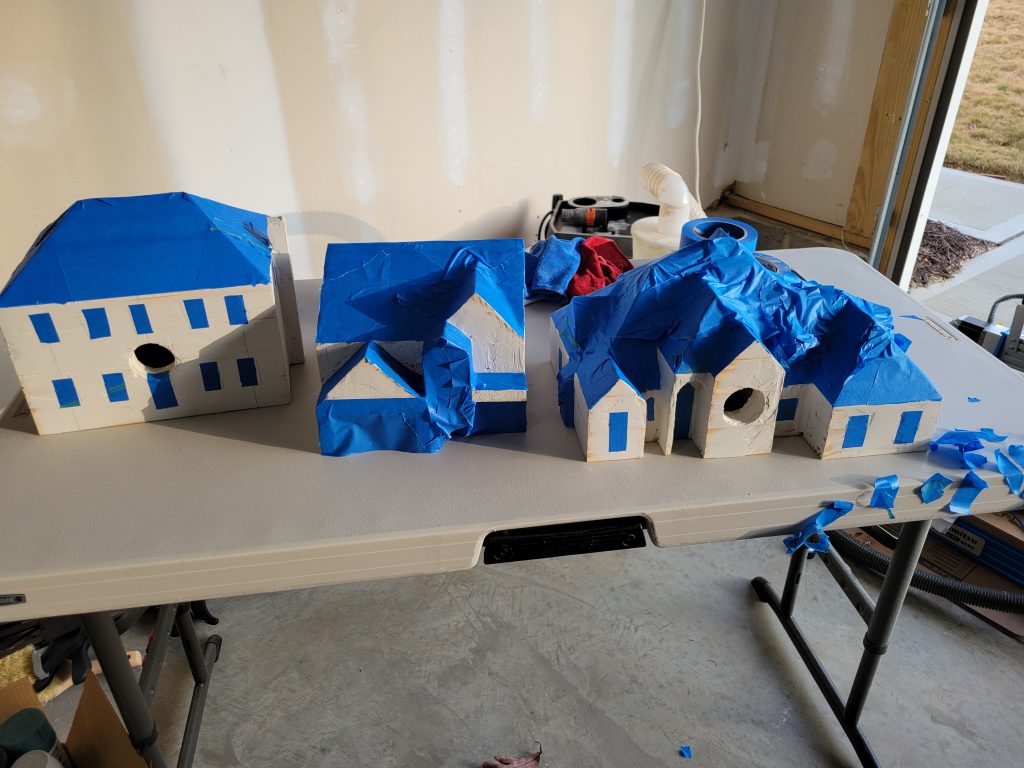

The brick look came from Rust-Oleum Stone Creations textured spray paint in a red brick finish. Masking the roof, windows, and trim kept the spray texture where it belonged while preserving clean edges for the gray roof, white window trim, and black shutters.

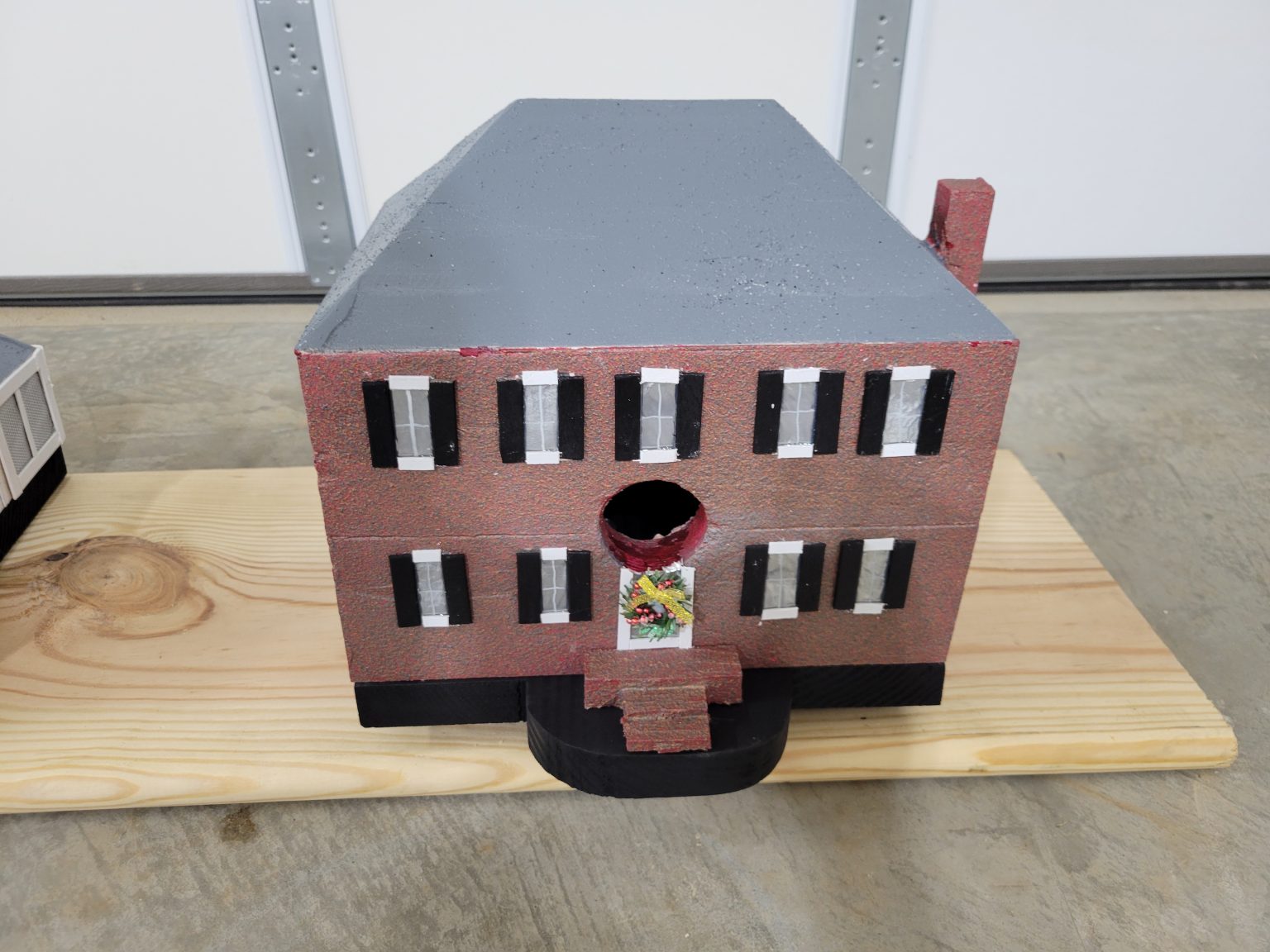

Small details finished the transformation: dark shutters, white window muntins, a gray roof, a chimney, front steps, and the little wreath below the bird opening. Those touches are what move the project from a CNC assembly into something that feels like a tiny place.

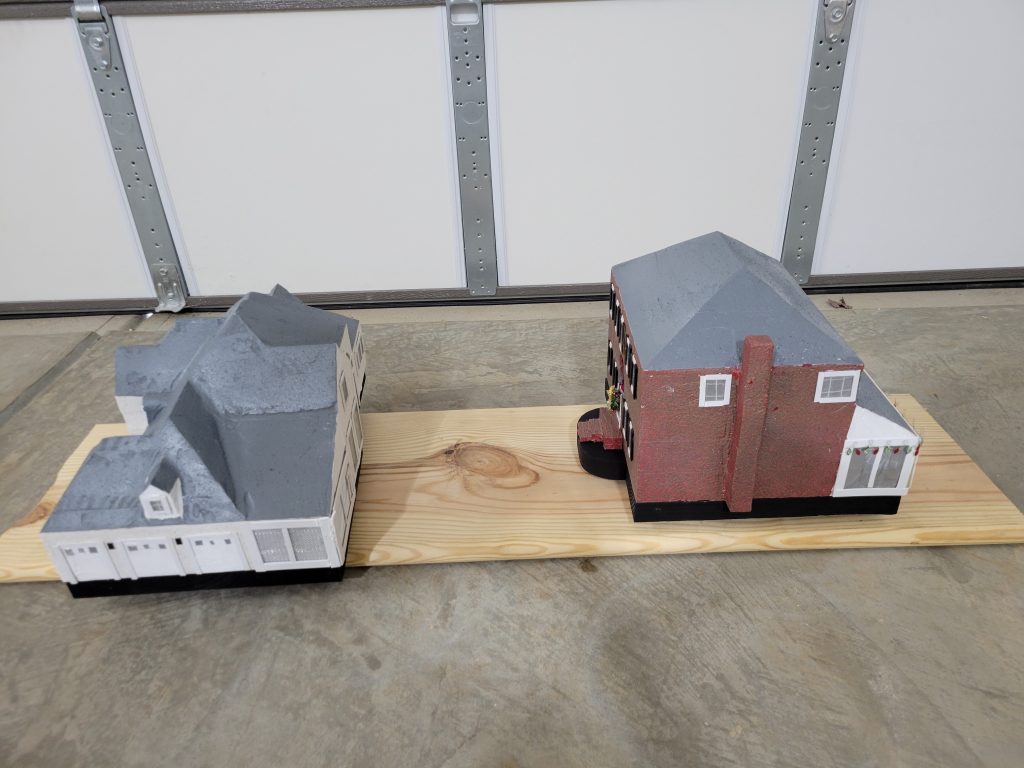

The end result is a custom birdhouse that carries both sides of the process: the precision of digital modeling and CNC-cut layers, plus the warmth of hand assembly, masking, paint, and finish work.
